Ucg-ultra Unifi Cloud Gateway Multi-wan - Ubiquiti

Descripción

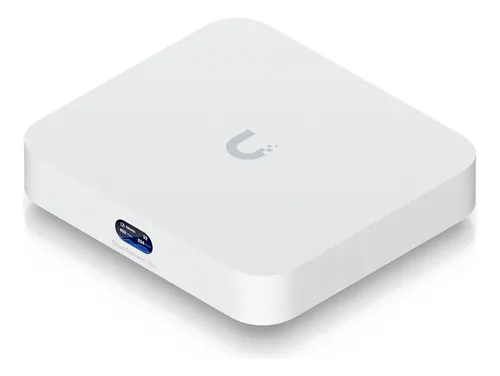

UCG-Ultra
UniFi Cloud Gateway multi-WAN (con fuente)

Mechanical
Dimensions 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
Weight 520 g (1.1 lb)
Enclosure material Polycarbonate

Hardware
Processor Quad-core ARM® Cortex®-A53 at 1.5 GHz
System memory 3 GB DDR4
On-board storage 16 GB eMMC
Management interface Ethernet
Bluetooth
Networking interface
LAN: (4) GbE RJ45 ports
WAN:(1) 1/2.5 GbE RJ45 port

IDS/IPS throughput 1 Gbps*
*Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation.

Power method USB type C (5V DC/3A)
Supported voltage range 100–240V AC
Max. power consumption 6.2W
LCM display 0.96" status display
Button Factory reset
Ambient operating temperature -10 to 40° C (14 to 104° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC

Gateway Features

Performance Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting

Next-generation security

Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall

Advanced networking

License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support

LEDs
Ethernet Green: link/activity

Application Requirements
Mobile app UniFi iOS™: Version 10.12.0 and later
UniFi Android™: Version 10.11.2 and later
