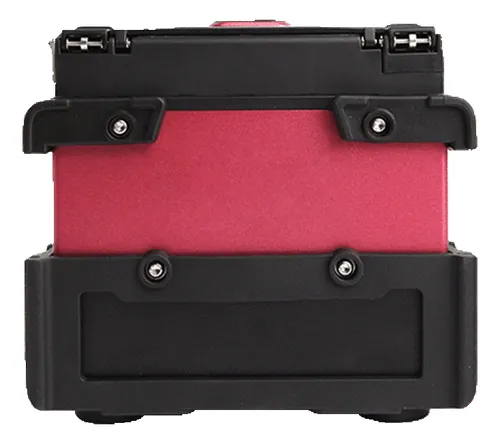

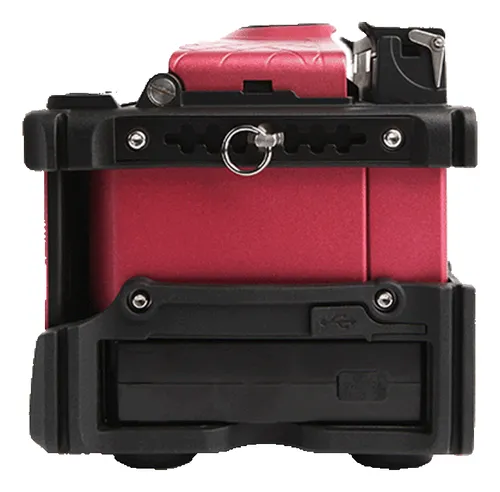

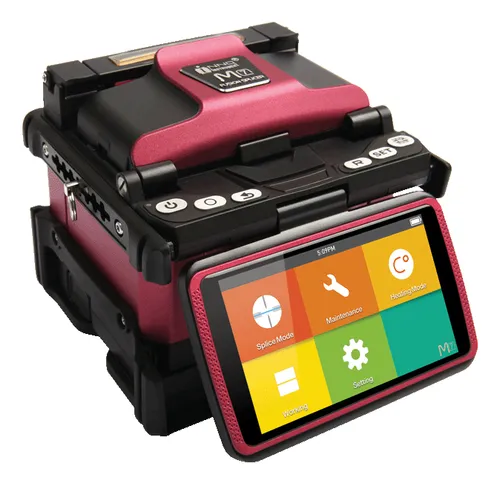

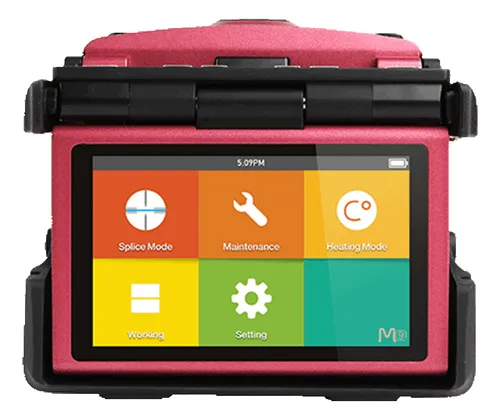

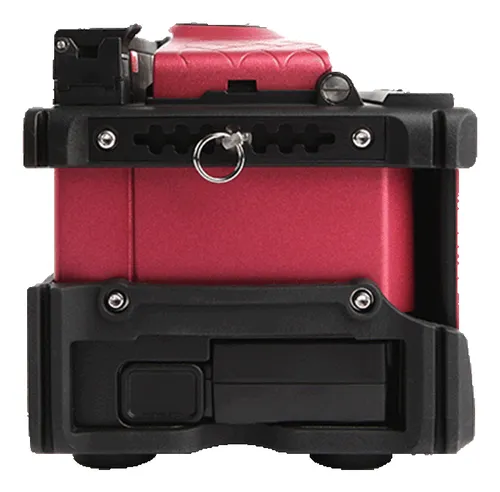

Fusionadora Fibra Optica, Inno M7, Distribuidor Oficial

Descripción

TECHNICAL SPECIFICATIONS
Model M7
Fiber alignment Mode Core Alignment
Motor Operation 6 Motors
Dimension 136H x 114W x 125D (including rubber bumper)
Weight 1.67kg (including battery) / 1.43kg (without battery)
Number of Fiber Single
Applicable Fibers SM(ITU-T G.652&T G.657) / MM(ITU-T G.651) / DS(ITU- T G.653) / NZDS(ITU-T G.655)
Compatible Fiber / Cable 0.25-3.0 mm / indoor Cable
Cleaved Length 10 - 16 mm
Cladding Diameter 80 um - 150 um
Splicing Mode Max 128 modes, preset 24 modes
Heating Mode Max 32 modes, preset 7 modes
Typical Splice Loss 0.02dB(SM) / 0.01dB(MM) / 0.04dB(DS) / 0.04dB(NZDS) / 0.02dB(G.657)
Return Loss Measured by cut-back method relevant to ITU-T standards.
Lighting 60dB
Splicing Time 2 White LEDs
Estimated Splice Loss Quick mode: 7 sec (Avg.) / SM Auto: 9sec (Avg.)
Heating Sleeve Length Available
Heating Time 20 mm - 60 mm
Results Storage 13 sec (45mm, slim 60mm) , 15 sec (60mm)
Tention Test Last 10,000 records
Operating Condition 1.96-2.25N
Storage Condition Altitude 0-5000m above sea level, Humidity 0-95%RH, -10-50 C, Wind 15m/s Humidity
Display 0-95%RH, -20-60 C, battery -20-30 C
Fiber View and Magnifiation 90 bi-directional view, 4.3 Color High Resolution Display
Power Supply 300X magnifiation with 3 display modes, 400X partial magnifiation
No. of Splice / Heating with AC Input 100-240V, DC Input 9-14V
Battery Typical usage: 130 cycles / Power save usage: 200 cycles
Operating Methods Button / Touch Screen
Automatic Calibration Automatic arc calibration by air pressure and temperature
Electrode Life 5500 arcs, can be extended by using an electrode grinder
Terminal Mini USB
