Router Tp Link Tl-er5120 4+1 Wan Lan Gigabit Balanceo Carga

Descripción

SCI Informática - 25 Años
____________________________________________________

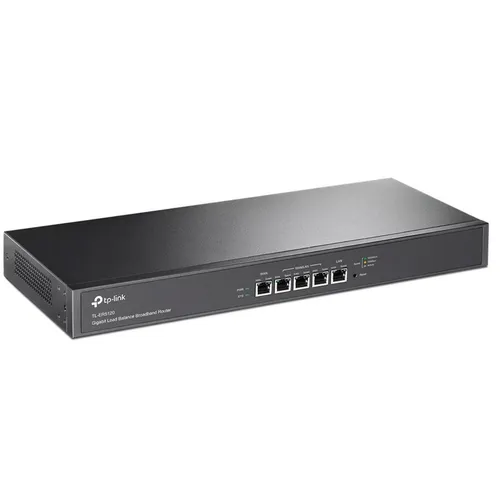

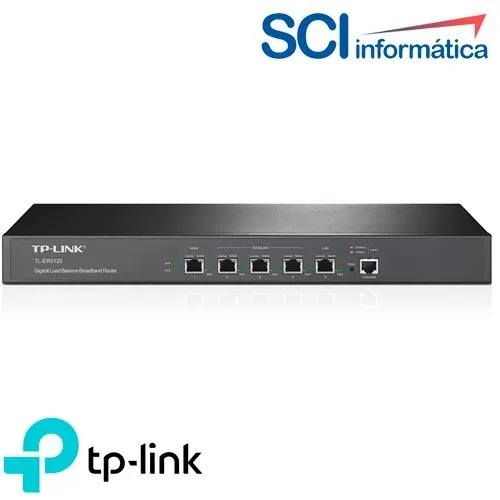

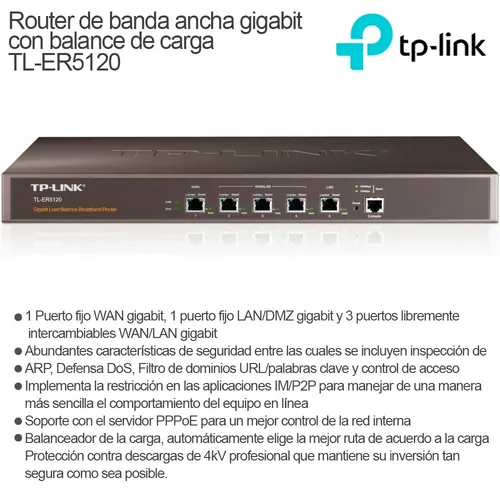

Router de banda ancha gigabit con balance de carga TL-ER5120

CARACTERÍSTICAS DE HARDWARE
Estándares y Protocolos IEEE 802.3, 802.3u, 802.3ab
TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, http, DNS, IPsec, PPTP, L2TP
Interface 1 Fixed 10/100/1000Mbps WAN Port
3 Free Changeable 10/100/1000Mbps WAN/LAN Ports
1 Fixed 10/100/1000Mbps LAN/DMZ Port
1 Console Port (RJ-45 On RS232)
Medios de Red 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100O STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100O STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Botón Reset Button
Fuente de Alimentación Internal Universal Power Supply
AC100-240V~ 50/60Hz Input
Flash 8MB
DRAM DDRII 128MB
LED PWR, SYS, Link/Act, Speed, WAN, DMZ
Dimensiones (W X D X H) 17.3x8.7x1.7 in.(440x220x44 mm)
19-inch Standard Rack-Mount Width, 1U Height

RENDIMIENTO
Sesiones Concurrentes 120000
Rendimiento NAT 350Mbps

FUNCIONES BÁSICAS
WAN Connection Type Dynamic IP, Static IP, PPPoE, PPTP, L2TP, Dual Access, BigPond
DHCP DHCP Server/Client
DHCP Reservation
MAC Clone Modify WAN/LAN/DMZ MAC Address
Switch Setting Port Mirror
Rate Control
Port Config
Port VLAN
IPTV Bridge, Custom
IPv6 IPv6 Support
VLAN 802.1Q VLAN, Port VLAN

FUNCIONES AVANZADAS
Load Balance Intelligent Load Balance
Policy Routing
Protocol Binding
Link Backup (Timing, Failover)
Online Detection
NAT One-to-One NAT
Multi-nets NAT
Virtual Server, DMZ Host, Port Triggering, UPnP
FTP/H.323/SIP/IPsec/PPTP ALG
Routing Static Routing
Dynamic Routing (RIP v1/v2)
System Mode NAT, Non-NAT, Classical Routing
Traffic Control IP-based Bandwidth Control
Guarantee & Limited Bandwidth
Time-scheduled Policy
IP-based Session Limit

TRANSMISSION
Load Balance Intelligent Load Balance
Link Backup (Timing, Failover)
Online Detection
NAT One-to-One NAT
Multi-nets NAT
Virtual Server
Port Triggering
FTP/H.323/SIP/IPsec/PPTP ALG
UPnP
Routing Static Routing
Policy Routing
Session Limit IP-based Session Limit
Bandwidth Control IP-based Bandwidth Control

SEGURIDAD
DMZ Port 1 Hardware DMZ Port
Application Control IM, P2P, Web IM, Web SNS, Web Media, Protocol, Proxy Blocking
Attack Defense TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
Filtering MAC Filtering
URL/Keywords Filtering
Web Content Filtering (Java, ActiveX, Cookies)
ARP Inspection Sending GARP Packets
ARP Scanning by WAN/LAN
IP-MAC Binding
Access Control Source/Destination IP Based Access Control

AUTHENTICATION
Web Authentication Local User Authentication,
Radius Sever Authentication,
Onekey Online
ADMINISTRACIÓN
Service PPPoE Server
E-Bulletin
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance Web/CLI/Telnet Management Interface
Remote Management
Export & Import Configuration
NTP Synchronize
Syslog Support

OTROS
Certification CE, FCC, RoHS
Contenido del paquete TL-ER5120
Resource CD
Power Cord
Rack-mount Kit
Installation Guide
System Requirements Microsoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
Environment Operating Temperature: 0¿~40¿ (32¿~104¿)
Storage Temperature: -40¿~70¿ (-40¿~158¿)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
